CARAVAN AND CARAVAN SITE INSTALLATIONS (use BS7671:2018 Amendment 2:2022)
Special Installations: Caravans and caravan site installations, safety, regulation requirements, cable types and supports, gas, bonding, circuits and protection - 8 questions from a bank of questions
Answer ALL questions. Look for any feedback given if you get an answer incorrect. Keep choosing an answer until you get it correct. CORRECT or INCORRECT answers are indicated at the TOP of the page. A score is given at the TOP of the page when the exercise has been completed. © K.Brown 2022
Which section of the BS7671 details the requirements for caravans and motorhomes?
? 717 ? 701 ? 721 ? 705
Socket outlets provided on a caravan site must be protected by RCD. What is the MAXIMUM number of sockets recommended per RCD?
? 2 ? 1 ? 4 ? 3
What rating of RCD should be provided for socket outlets on a caravan site?
? 100mA ? 30mA ? 500mA ? 20mA
What is the MAXIMUM length that an extension lead supplying a caravan from a caravan site socket outlet be?
? 25metres ? 27meters ? 37meters ? 47meters
What type of cable is normally used to supply caravan site socket outlets underground?
? PVC/PVC ? SWA ? MIMS ? Singles in conduit
Caravans often have storage compartments for gas cylinders. What does BS7671 detail about the installation of electrical equipment in these areas?
? only lighting can be installed here ? only ELV equipment should be installed here ? no restriction on electrical equipment here ? only a CCU can be fitted here
What is the most suitable cable for the internal wiring of a caravan or motorhome?
? SWA ? flexible conductors ? solid conductors ? HOFR
What does BS7671 detail about the installation of extra low-voltage battery circuits (ELV) in close proximity to 230v mains circuits?
? no restrictions ? both circuits can be run together ? both circuits should not come into contact with each other ? ELV should only be run on the exterior of the caravan/motorhome
What is the recommended size of supply cable for a 32A supply to a caravan 'power hook-up point' on a caravan site/park?
? 1.5sq/mm ? 2.5sq/mm ? 6.0sq/mm ? 4.0sq/mm
What is the recommended distance for supports for horizontal cable and flexible conduit runs in a caravan?
? 10cm ? 15cm ? 20cm ? 25cm
How often should a caravan / caravan site installation be inspected and tested
? every 5 years ? every year ? between 1 and 3 years ? between 1 and 5 years

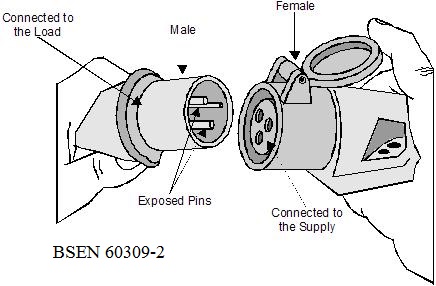

What is the rating of the 'Blue' industrial-type socket outlet to BSEN60309-2 shown here, used to supply a caravan with 230v on a caravan site?
? 13A ? 6A ? 16A ? 32A
Which section of the BS7671 details the requirements for caravan and camping parks?
? 721 ? 701 ? 708 ? 705
